Taco

KS1509 Taco KS Series 3HP Vertical In-Line Pump with Split Coupling

(No reviews yet) Write a Review
MPN:
KS1509
Condition:
New
Availability:
Please Contact Us For Lead Time!
Shipping:
$285.00 (Fixed Shipping Cost)
$6,969.00

Description

KS1509 Taco KS Series Vertical In-Line Pump with Split Coupling 3HP. KS Series Vertical In-Line Pump with Split Coupling, 1 1/2 " (38) mm Suction, 1 1/2 " (38) mm Discharge, 9 " Nominal Imp Dia, 1750 RPM, TEFC, 3 HP, Starting Option = Across the Line, 230/460/60/3 Usable at 208, 40 Deg C Ambient/NEMA STD./CCW (Standard), Baldor Super E Premium Efficiency - Meets MG1-12.55 with AEGIS Shaft Grounding, Ceramic Seat, Carbon Rotor, EPT Rubber, 250 Deg F, Material of Construction = Cast Iron Casing, Cover, Bronze Impeller, ANSI Class 125 Flanges no WR, Motor Frame = 182, EISA Compliant.

Information:

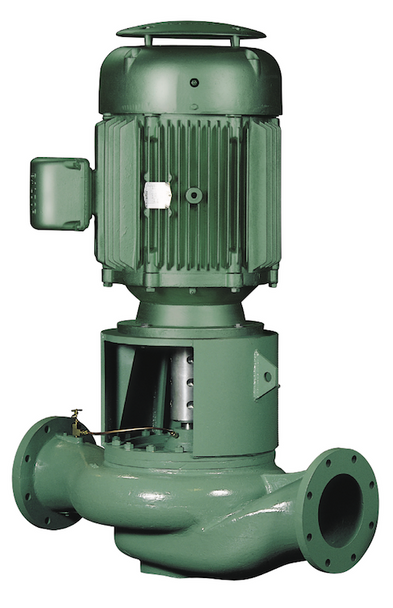

Taco KS Series Vertical Split Coupled Pumps designed for seal changes without disturbing motor or piping. Taco KS Vertical Split-Coupled In-Line Pumps are designed for optimum performance, easy installation and simplified maintenance. The split coupled design enables you to change the seal without disturbing the motor or piping. The axial load is hydraulically balanced to increase bearing life, deliver better pump efficiencies and lower NPSH requirements. They're ideal for HVAC and Industrial application and Domestic Water Service flows to 2500 GPM.

Performance Data GPM: 40 - 12,000
Head (ft): 10 - 380
HP: 3/4 - 600
Sizes: 1-1/2-14

If you have any questions please give us a call at 1-800-781-7405 or email us your request. Sales@NationalPumpSupply.com.

Please Contact Us For Lead Time!

View AllClose

Warranty Information

Warranty: Quoted prices include standard factory warranties. Warranty requires install, start-up and operation as per the manufacturers IOM. Job Site Assistance: By Others Start-Up: By Others Commissioning: By Others: These services, if a project requires start up, they are responsibility of contractor or commissioning agent. Owner training assistance, as outlined in any equipment specifications the responsible of the commissioning agent. Clarifications & Exclusions 'ALTERNATES' are offered for consideration and will always be subject to the engineer's and owners approval. Excludes any seismic calculations or supports, coatings other than factory standard. Terms: prices are quoted are "each" (unless stated otherwise) and FOB point of origin with no freight allowed freight ships via common ground carrier, and inside continental US Only - any special shipping requirements to be responsibility of purchaser. We offer all prices less tax, with a validity of 30 days from the date quoted and all sales are final. Once items have shipped and left the warehouse National Pump Supply is not responsible for any damage caused during the shipping process. You must contact the shipper directly and file a claim with the shipping company. Lead Time: All prices offered are based on standard factory lead times (or) as stated within quotation. Expedited shipments may be available at an additional charge. Contact your Sales Engineer for the ETA of any specific equipment on any order or quotation.
